Norinco SH-15 SPH
Type: Self-Propelled Howitzer
Domain: land
Country of Origin: China
Manufacturer: NORINCO (China North Industries)
First Deployed: 2019
Overview

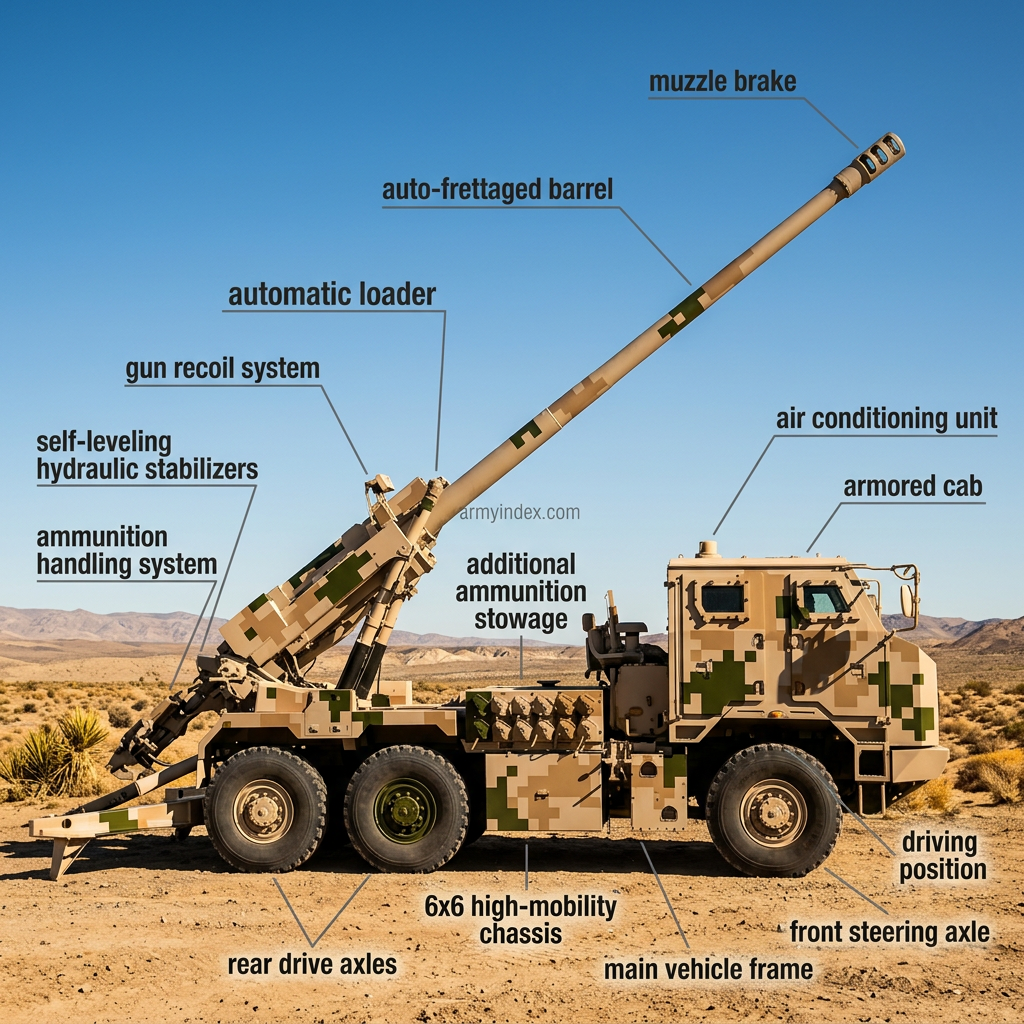

The Norinco SH-15 is a wheeled 155mm/52-calibre self-propelled howitzer mounted on a 6x6 all-terrain truck chassis. Pakistan procured the SH-15 to replace ageing M109 systems with a more mobile platform suited to fast-moving operations. It features an autoloader, computerised fire control, and GPS/INS navigation enabling autonomous fire missions. Maximum range is approximately 53 km with rocket-assisted projectile. The wheeled platform enables rapid strategic repositioning by road, though cross-country mobility is inferior to tracked systems. Pakistan is the primary export operator.
Technical Specifications
| crew | 4 |
|---|---|
| vehicle | Tracked |
| autoloader | Semi-automatic |
| caliber_mm | 155 |
| range_km_max | 50 |
| weight_tonnes | 33 |
| rate_of_fire_rpm | 8 |
| barrel_length_cal | 52 |
Operators
- Pakistan
