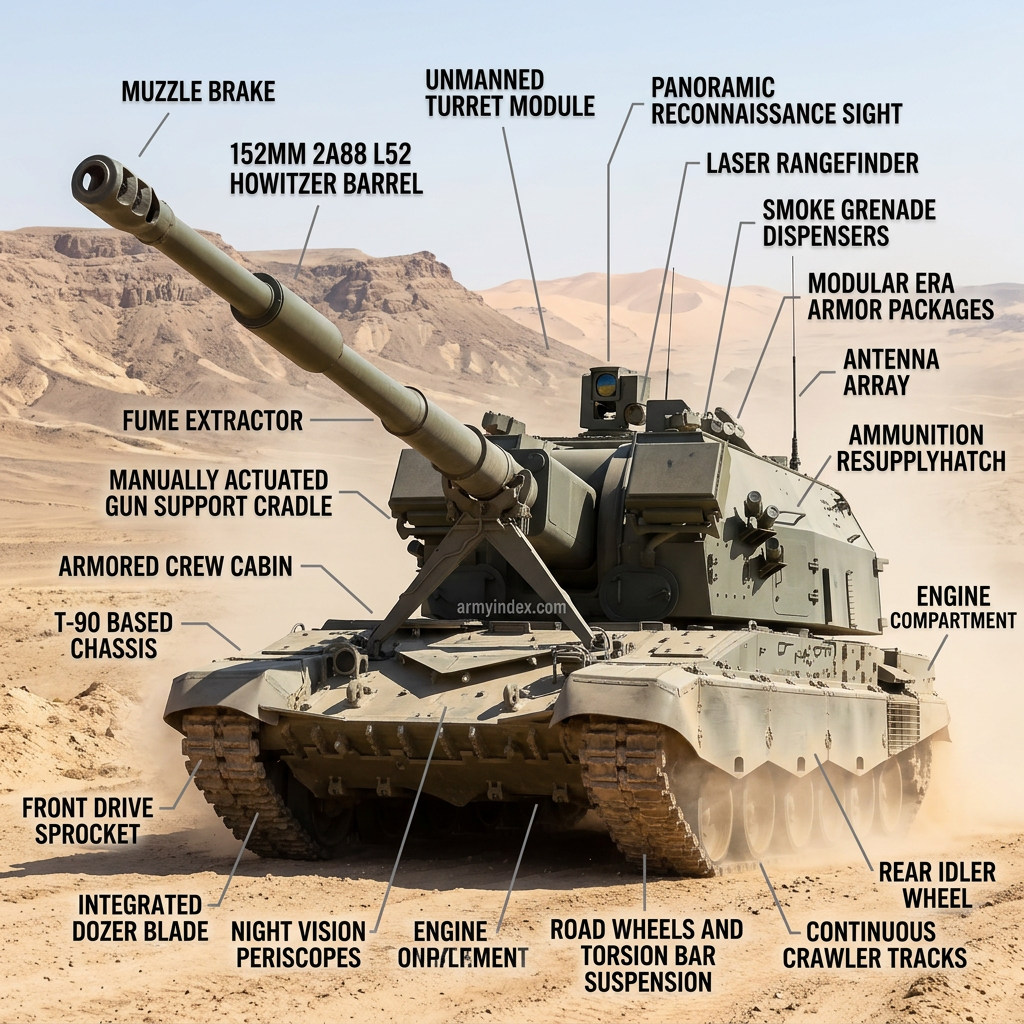

2S35 Koalitsiya-SV
Type: Self-Propelled Howitzer
Domain: land
Country of Origin: Russia
Manufacturer: Uraltransmash
First Deployed: 2023
Overview
The 2S35 Koalitsiya-SV is Russia's next-generation self-propelled howitzer entering limited service from 2023. It features a fully automated ammunition handling and loading system achieving 10-12 rounds/minute. The 152mm/52-calibre gun provides 40 km range with standard projectiles and 70+ km with rocket-assisted munitions. The crew of 3 operates from a protected capsule completely separated from the ammunition and propellant. The system uses GLONASS for navigation and can integrate guided munitions including the Krasnopol laser-guided shell. Production is proceeding very slowly, with the 2S19M2 Msta-S remaining Russia's primary SPH.
Technical Specifications
| range | 70-80 km |
|---|---|
| length | 12m |
| weight | 48 tons |
| caliber | 152mm |
| rate_of_fire | 16 rounds/min |
Operators
- Russia
